Product description

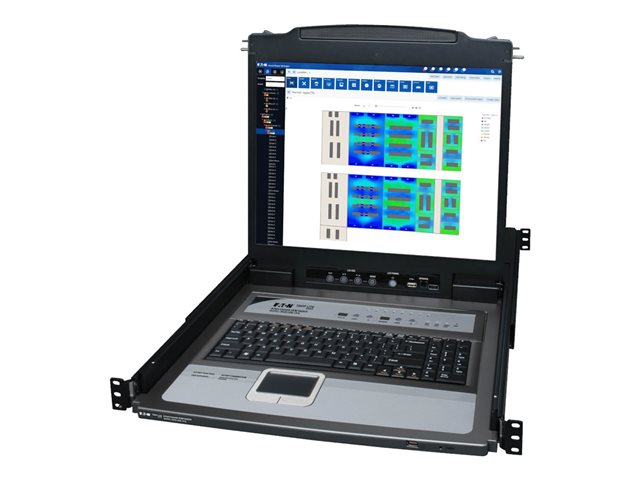

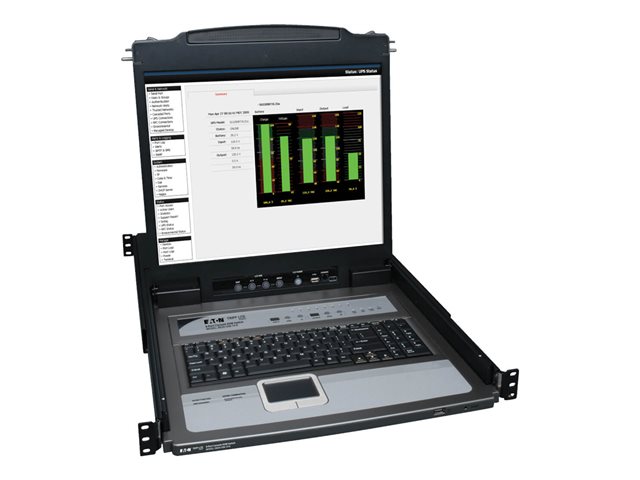

Tripp Lite's B020-U08-19-K KVM Switch gives you a rack-mountable keyboard, LCD and touchpad in a single console that occupies only 1U of rack space. Easy to install and use, it's the optimal solution for controlling up to 8 computers/servers. The B020-U08-19-K has a built-in 19" LCD screen that supports video resolutions up to 1280 x 1024. You can switch easily between the 8 ports using on-console push buttons, an on-screen display(OSD) or keyboard hot key commands. Multi-level password security can be set up for an administrator and up to 4 local users to ensure only those with authorization can access the connected computers. The eight included P778-series combo cable kits support both PS/2 and USB connections, so no adapters are required. A console cable kit can be plugged into the rear of the unit to allow for connection of a Tripp Lite B051-000 IP Remote Access Unit or an external console. A USB port on the front of the keyboard lets you connect an external mouse, plus an external USB 1.1 port means you can add a peripheral that can be shared across all connected servers. When not in use, the B020-U08-19-K stores neatly in a rack drawer and pulls out when needed. This KVM console is compatible with all major operating systems. Heavy-duty steel housing stands up to frequent use.
General
Brand
Tripp Lite
Manufacturer
Tripp Lite
Model
8-Port Rack Console KVM Switch w/19" LCD & 8 PS2/USB Cables 1U
Packaged Quantity
1
Product Line
Tripp Lite
Category of Accessory
Desktop computer and server accessories
Audio Output
Type
None
Dimensions & Weight
Depth
68.6 cm
Height
4.4 cm
Weight
13.9 kg
Width
43.2 cm
Display
Diagonal Size
19 in
Diagonal Size (metric)
48.3 cm
Form Factor
Rack-mountable
Interface
VGA (HD-15)
Native Resolution
1280 x 1024
Type
KVM console
V-Sync Rate at Max Res.
75 Hz
Input Device
Type
Keyboard , Touchpad
Miscellaneous
Color
Black
Color Category
Black
Compliant Standards
FCC , RoHS , UL 60950-1 , IEC 60950-1 , FCC Part 15 A , CSA
Product Material
Steel
Networking
Ports Qty
8
Type
KVM switch
Service & Support
Type
1-year warranty
System Requirements
OS Required
SunSoft Solaris , Apple MacOS , Linux , Microsoft Windows Vista / 2000 / XP
TV Tuner
TV Tuner Presence
No
