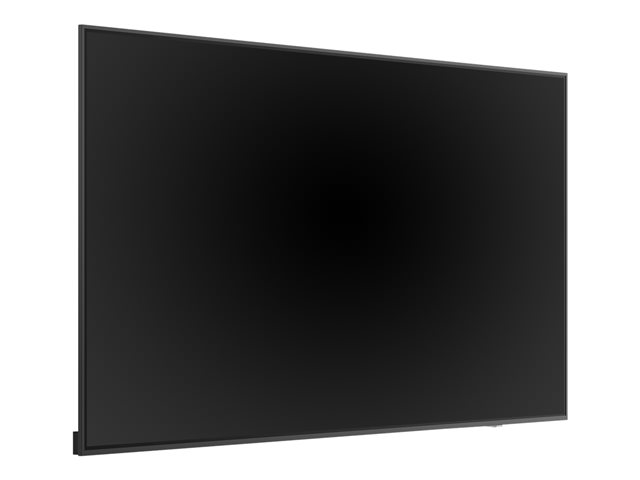

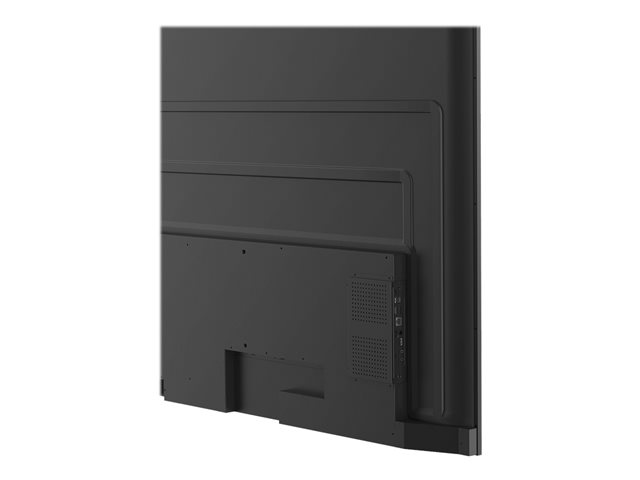

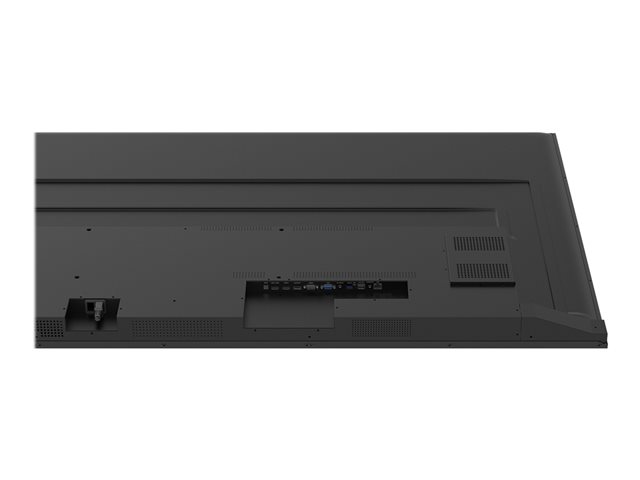

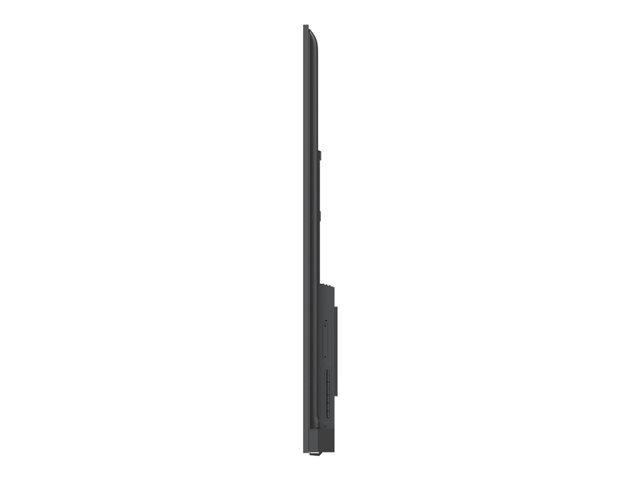

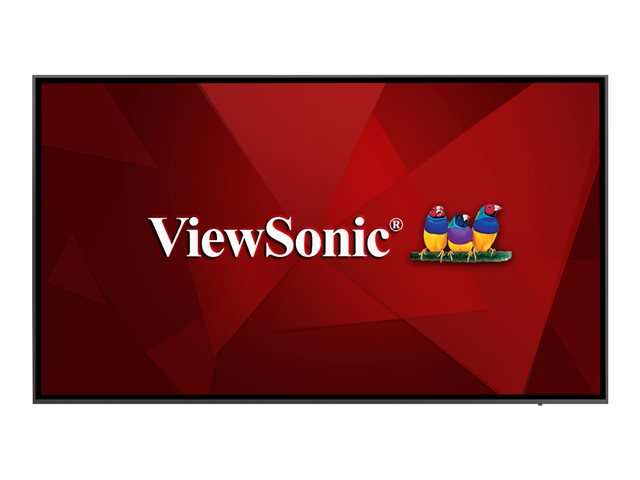

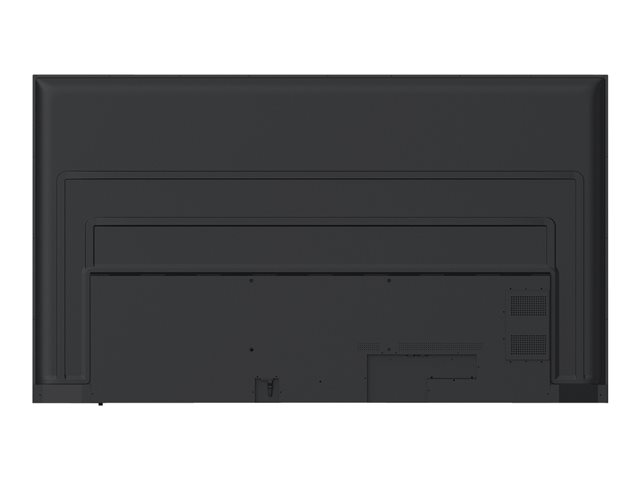

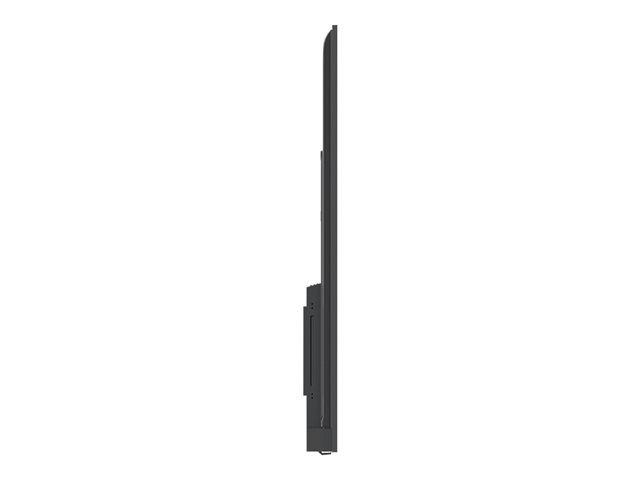

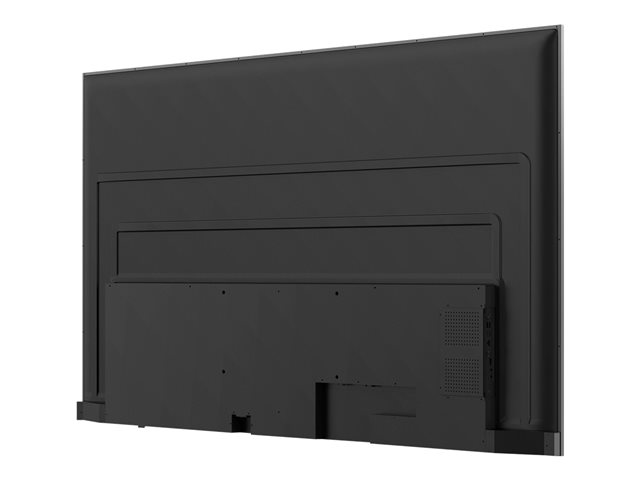

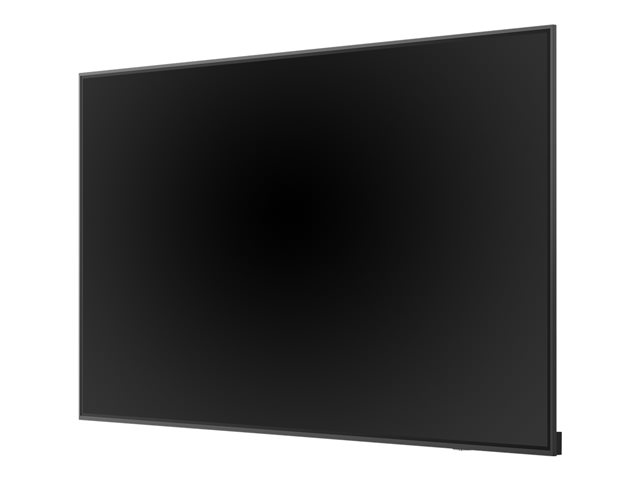

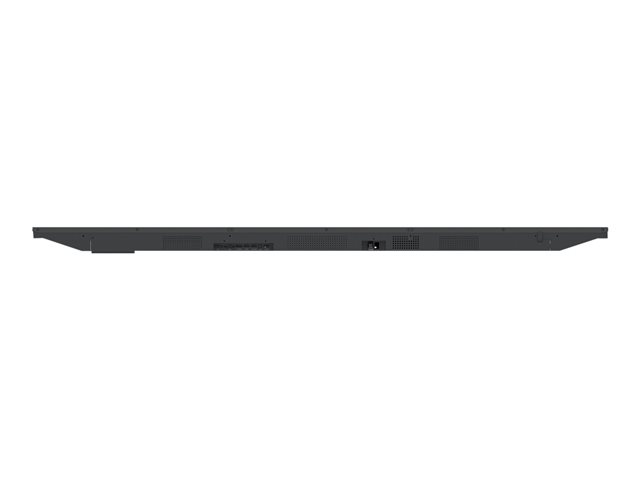

ViewSonic CDE8620-W - 86" Diagonal Class LED-backlit LCD display - digital signage
Viewsonic
Intcomex SKU: MT086VWS01
Part number: CDE8620-W
Product description
The ViewSonic CDE8620-W is a 86" premium 4K commercial display. With features including a razor-sharp resolution of 3840 x 2160, 450-nit high brightness, 178-degree ultra-wide viewing angles, 2 x 16W speakers, and wireless screen sharing, the CDE8620-W transforms meeting rooms into a dynamic communications hub. The built-in ViewBoard screen sharing software, ViewBoard Cast (along with the optional ViewSonic vCastSender app), enables both on-site and online users to participate in conferences and simultaneously share content. Equipped with twin dual-core processors, 3GB RAM, and 16GB of internal memory, the CDE8620-W can play multimedia from internal storage or a USB flash drive 24 hours a day, seven days a week. And with remote configuration and content management system support, the ViewSonic CDE8620-W is also suitable for a wide array of diverse signage applications. Chrome, Android, Windows, Mac OS, and iOS compliant.
Product features
  • Ultra HD resolution
    With four-times the resolution of Full HD, this Ultra HD 3840x2160 display delivers a breathtaking viewing experience with immersive images that are vibrant, clear, and as large as life.
  • Powerful all-in-one SOC platform
    The ViewSonic EMBEDDED Signage Platform (VESP) is a Linux-based Kernel OS, all-in-one solution that simplifies installation and maintenance. With VESP, there is no need for any external devices to communicate with the server or play digital media. Enjoy simplified development, reinforced capability with multiple web formats, and secured protection.
  • Free ViewBoard cast content sharing software
    ViewBoard Cast enables content to be streamed from mobile devices onto the display via wireless or cable networks. Multiple users can simultaneously annotate content (such as documents, cloud files, multimedia, etc.) on their devices in real time, and then stream and share that content onto the ViewSonic large format display. One-to-one, one-to-many, and 4-in-1 multi-screen options are also available.
  • Integrated content management system
    Enjoy a free cloud-based introductory service subscription from ViewSonic's content management software, powered by Revel Digital platform. This allows you to instantly transfer multimedia from any HTML5 browser-based device to the display no matter where you are.
  • AV control system certified
    The AV control system is at the heart of all integrated AV systems and impacts the overall effectiveness of the entire system. Proper programming is essential for completing profitable projects, gaining user confidence and client satisfaction, and promoting relationships. These commercial displays are Crestron, Extron and AMX certified.
General
Brand
ViewSonic
Manufacturer
ViewSonic
Model
CDE8620-W
Product Line
ViewSonic
Audio System
Speaker System
2 speakers
Commercial Display
Operating Hour
24 hours
Dimensions & Weight
Comments
Without stand
Depth
8.2 cm
Height
110.9 cm
Weight
50.4 kg
Width
193.1 cm
Dimensions & Weight (Shipping)
Shipping Depth
28 cm
Shipping Height
127.1 cm
Shipping Weight
69.8 kg
Shipping Width
211.8 cm
Display
3D
No
Curved Screen
No
Diagonal Size
86 in
Native Resolution
3840 x 2160
Touchscreen
No
Environmental Standards
ENERGY STAR Certified
Yes
Media Player
USB Ports Qty
3
Miscellaneous
Color Category
Black
Flat Panel Mount Interface
600 x 400 mm
Network & Internet Multimedia
Connectivity
LAN
Power Device
Power Consumption Operational
365 Watt
Service & Support
Type
3-year warranty
Television
Brightness
450 cd/m²
Commercial Targeting
Digital signage
Commercial Use
Yes
Diagonal Class
86 in
Diagonal Class (metric)
218.4 cm
Display Format
4K UHD (2160p)
Frame Rate & Enhancement Technology
60 Hz Refresh Rate
HDMI Ports Qty
2
Image Aspect Ratio
16:9
Image Contrast Ratio
1200:1
LCD Backlight Technology
LED backlight
LCD Display Technology
IPS
LED Backlight Technology
Direct-lit LED
Panel Refresh Rate
60 Hz
PC Interface
VGA (HD-15) , DisplayPort
Resolution
3840 x 2160
Response Time
8 ms
Type
LED-backlit LCD flat panel display
Video Interface
HDMI
Viewing Angle
178°
TV Tuner
Tuners Configuration
No tuner
TV Tuner Presence
No
